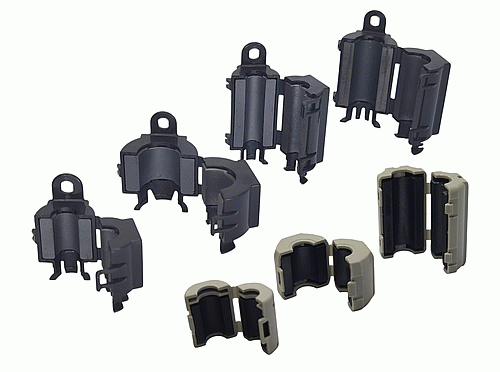

Split Cores for Round Cable

For EMI suppression on small conductors, Sintertech manufactures a complete line of extremely compact, high performance ferrite beads. They are often used on short, rigid or semi-rigid miniature conductors. They are uniquely suited for noise suppression on conductors carrying DC and AC, as well as digital or analog signals.

  • Internal dimensions from 4.6 mm to 15 mm
  • Precision finished smooth surfaces prevent damage to wire insulation
  • Extremely compact with small mass
  • Custom design available

  • Small diameter wires and conductors
  • Component leads of high gain/high bandwidth active device (e.g. Field effect or bipolar junction transistor)



# Device
A 12.6 ± 0.25
B 7.3 ± 0.25
C 15.9 ± 0.3
D 5.8 ± 0.1
30 MHz ≥ 44
50 MHz ≥ 58
100 MHz ≥ 71
A 14 ± 0.3
B 7 ± 0.3
C 28 ± 0.4
D 11 ± 0.3
30 MHz ≥ 85
50 MHz ≥ -
100 MHz ≥ 210
A 16 ± 0.4
B 8 ± 0.4
C 15.2 + 0.3/-0.2
D 5.8 ± 0.1
30 MHz ≥ 47
50 MHz ≥ 63
100 MHz ≥ 89
A 16 ± 0.4
B 8 ± 0.4
C 15.2 + 0.3/-0.2
D 8.1 ± 0.1
30 MHz ≥ 61
50 MHz ≥ 75
100 MHz ≥ 94
A 16 ± 0.4
B 8 ± 0.4
C 15.2 + 0.3/-0.2
D 8.1 ± 0.1
30 MHz ≥ 61
50 MHz ≥ 75
100 MHz ≥ 94
A 16 ± 0.4
B 8 ± 0.4
C 30.2 + 0.3/-0.2
D 8.1 ± 0.1
30 MHz ≥ 84
50 MHz ≥ 110
100 MHz ≥ 152
A 16 ± 0.4
B 8 ± 0.4
C 30.2 + 0.3/-0.2
D 8.1 ± 0.1
30 MHz ≥ 117
50 MHz ≥ 142
100 MHz ≥ 173
A 16 ± 0.5
B 8.45 ± 0.2
C 30.2 + 0.3/-0.2
D 8.14 ± 0.1
30 MHz ≥ 117
50 MHz ≥ 142
100 MHz ≥ 173
A 16 ± 0.5
B 10 ± 0.5
C 15.2 + 0.3/-0.2
D 9.1 ± 0.1
30 MHz ≥ 54
50 MHz ≥ 67
100 MHz ≥ 86
A 18 ± 0.4
B 10.5 ± 0.4
C 15.2 + 0.3/-0.2
D 9.4 ± 0.1
30 MHz ≥ 45
50 MHz ≥ 60
100 MHz ≥ 81
A 18 ± 0.5
B 10.5 ± 0.4
C 15.2 + 0.3/-0.2
D 9.1 ± 0.1
30 MHz ≥ 54
50 MHz ≥ 67
100 MHz ≥ 86
A 18 ± 0.5
B 10.5 ± 0.5
C 15.2 + 0.3/-0.2
D 9.1 ± 0.1
30 MHz ≥ 83
50 MHz ≥ 102
100 MHz ≥ 136
A 18 ± 0.4
B 10 ± 0.4
C 15.2 + 0.3/-0.2
D 9.1 ± 0.1
30 MHz ≥ 104
50 MHz ≥ 127
100 MHz ≥ 156
A 21 ± 0.5
B 12 ± 0.5
C 15.2 + 0.3/-0.2
D 10.6 ± 0.1
30 MHz ≥ 38
50 MHz ≥ 54
100 MHz ≥ 72
A 21 ± 0.4
B 12 ± 0.4
C 15.2 + 0.3/-0.2
D 10.6 ± 0.1
30 MHz ≥ 51
50 MHz ≥ 63
100 MHz ≥ 83
A 21 ± 0.5
B 12 ± 0.5
C 15.2 + 0.3/-0.2
D 10.6 ± 0.1
30 MHz ≥ 70
50 MHz ≥ 103
100 MHz ≥ 162
A 22 ± 0.4
B 11 ± 0.3
C 28 ± 0.4
D 11 ± 0.3
30 MHz ≥ 95
50 MHz ≥ -
100 MHz ≥ 235
A 25 ± 0.5
B 15 ± 0.5
C 15.2 + 0.3/-0.2
D 12.6 ± 0.1
30 MHz ≥ 38
50 MHz ≥ 49
100 MHz ≥ 68
A 25 ± 0.4
B 15 ± 0.4
C 15.2 + 0.3/-0.2
D 12.6 ± 0.1
30 MHz ≥ 49
50 MHz ≥ 61
100 MHz ≥ 82
A 25 ± 0.5
B 15 ± 0.5
C 15.2 + 0.3/-0.2
D 12.6 ± 0.1
30 MHz ≥ 76
50 MHz ≥ 108
100 MHz ≥ 160
